Sealed Solid Dosage Granulation Line

At a Glance

The Sealed Solid Dosage Granulation Line is an integrated wet granulation system that combines high-speed wet mixing, vacuum conveying, fluid bed drying, milling and blending into a continuous manufacturing solution. Developed for pharmaceutical, nutraceutical, food and specialty chemical applications, the system minimizes manual material handling while improving granule consistency, production efficiency and GMP-oriented hygiene. By keeping materials inside a closed transfer system throughout the manufacturing process, it helps reduce dust generation, lower cross-contamination risks and create a safer production environment.

Product Overview

Modern pharmaceutical production demands more than simply connecting individual machines. Manufacturers increasingly require integrated processing solutions capable of delivering stable product quality, higher productivity and consistent compliance with increasingly stringent regulatory expectations. The Sealed Solid Dosage Granulation Line has been developed to meet these requirements by combining every critical stage of wet granulation into one coordinated production system.

Instead of transferring materials manually between separate pieces of equipment, powders move automatically through a fully enclosed vacuum conveying system, allowing each processing stage to operate as part of one continuous workflow. From raw material charging and wet granulation to drying, milling and final blending, every transfer takes place within a sealed production environment designed to protect both the product and the operator.

This integrated approach significantly reduces unnecessary handling while improving process stability and batch repeatability. Manufacturers benefit from better utilization of production space, simplified material logistics and greater control over critical process parameters. As production volumes increase, automation also helps minimize operator intervention, reducing the possibility of human error and improving overall manufacturing efficiency.

Designed for pharmaceutical solid dosage production, the system is equally suitable for manufacturers processing nutraceutical ingredients, food powders and specialty chemicals that require reliable wet granulation and controlled powder handling.

How the Granulation Line Works

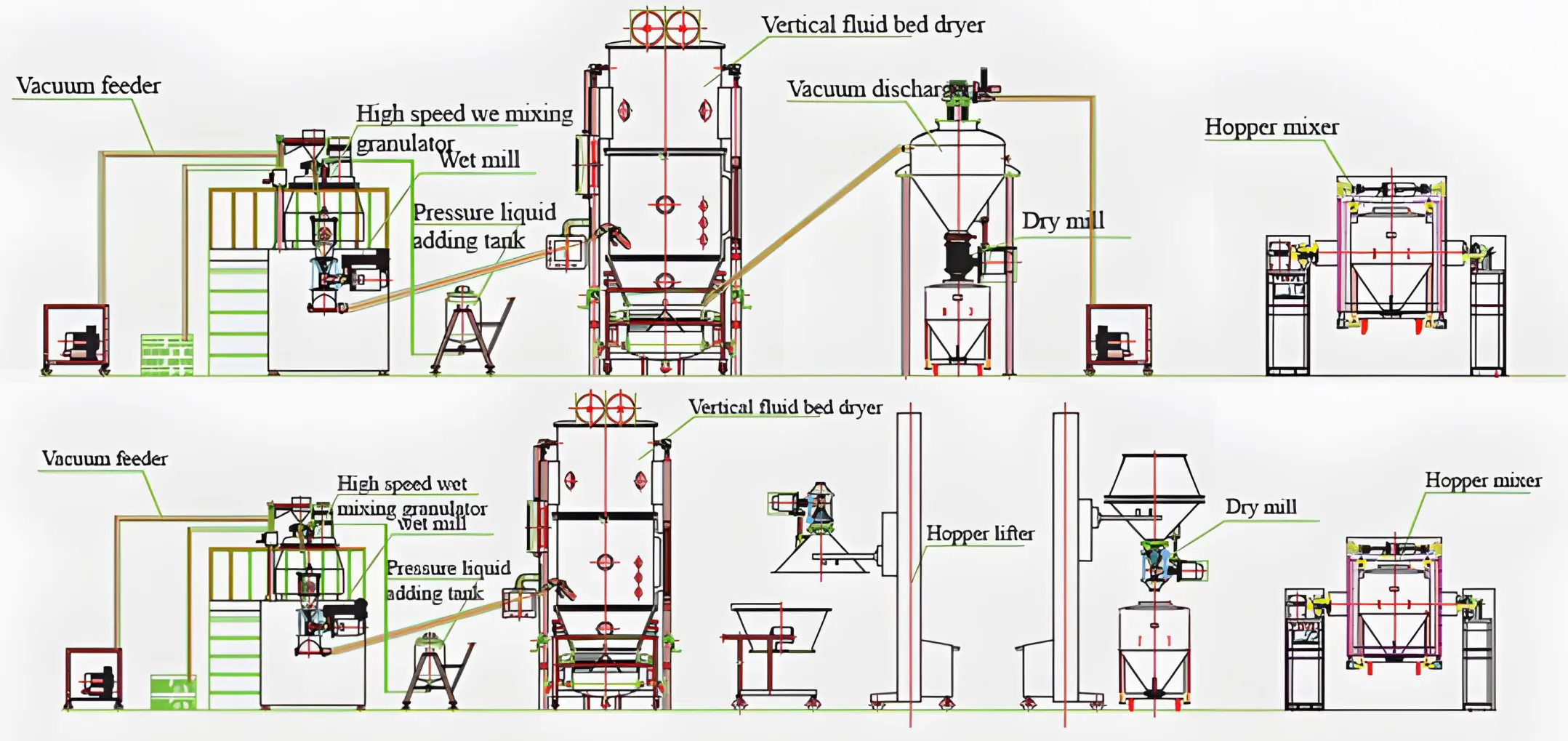

Production begins after accurately weighed raw materials are introduced into the system through a vacuum conveying system, eliminating the need for open manual transfer. The powders are automatically delivered into the High Speed Wet Mixing Granulator, where precisely controlled mixing creates a homogeneous powder bed before granulation begins.

A binder solution prepared in the pressure liquid adding tank is atomized through a spray nozzle to achieve uniform wetting across the entire powder mass. Simultaneously, the high-speed impeller and chopper generate intensive mixing energy, transforming loose powders into dense and uniform wet granules with excellent particle distribution.

Once granulation is complete, the material passes through a wet mill to produce consistent particle sizing before being transferred directly into the Vertical Fluid Bed Dryer. The enclosed conveying process prevents exposure to the surrounding environment while maintaining uninterrupted production flow.

Inside the fluid bed dryer, carefully controlled airflow removes moisture efficiently while protecting heat-sensitive formulations. Uniform drying conditions help preserve granule integrity and improve downstream processing performance.

Following drying, the granules are automatically discharged and enter the dry milling stage, where final particle size adjustment ensures excellent flowability and compressibility. The finished material is then transferred into a hopper blender, allowing any remaining formulation components to be mixed evenly before discharge for tablet compression, capsule filling or subsequent packaging operations.

Because every processing stage remains connected through a sealed material transfer system, the entire manufacturing cycle operates with minimal manual intervention. The result is improved process repeatability, lower contamination risk and more consistent product quality from batch to batch.

Engineered for Reliable Powder Processing

Reliable powder processing depends not only on the performance of individual machines but also on the stability of the complete manufacturing workflow. Traditional production layouts often require repeated manual transportation between granulation, drying and blending equipment, increasing both contamination risks and production variability.

The integrated Pharmaceutical Granulation Line addresses these challenges by connecting every major processing stage through automated material transfer. Rather than functioning as independent machines, the granulator, fluid bed dryer, milling units and blender operate as one coordinated production system.

This integrated design helps maintain consistent residence time throughout the process while reducing unnecessary interruptions that may affect granule quality. Continuous monitoring of operating parameters further improves process stability, making the equipment suitable for manufacturers seeking reliable long-term production performance.

Beyond improving manufacturing consistency, the enclosed workflow significantly reduces dust emissions within the production area. Cleaner production environments contribute to lower maintenance requirements, improved operator safety and easier compliance with modern pharmaceutical manufacturing practices.

Designed Around GMP Manufacturing

Good Manufacturing Practice extends beyond equipment construction; it requires production systems that support repeatable processes, effective cleaning and controlled material handling. The GMP Granulation Equipment has therefore been designed around enclosed production principles rather than simply adding protective covers to individual machines.

Throughout the manufacturing cycle, powders and granules remain inside a closed conveying network, minimizing direct operator contact and reducing opportunities for airborne contamination. This approach is particularly valuable when processing potent active pharmaceutical ingredients or fine powders that require enhanced containment.

Equipment surfaces are manufactured from pharmaceutical-grade stainless steel, with smooth internal finishes that facilitate cleaning and inspection. Optional Cleaning-In-Place (CIP) solutions can be incorporated into the system to further simplify sanitation procedures and reduce production downtime between batches.

The automation platform also supports recipe management, process monitoring and production data collection, allowing manufacturers to maintain greater control over critical process parameters while improving operational consistency.

Improve Productivity Without Compromising Quality

Increasing production capacity should never come at the expense of product quality. This Automatic Granulation Production Line has been engineered to balance both objectives by integrating material transfer, wet granulation, drying, milling and blending into a single automated process. Instead of operating each machine independently, every stage communicates through a continuous workflow that minimizes production interruptions and reduces the accumulation of intermediate materials.

Automation allows manufacturers to maintain stable process parameters throughout the production cycle, resulting in more uniform moisture distribution, improved particle size consistency and predictable granule density. These characteristics directly influence downstream tablet compression and capsule filling, where stable granule flowability and compressibility are essential for achieving consistent product performance.

By eliminating repeated manual handling, the production line also shortens batch turnaround time. Operators spend less time transferring materials between equipment and more time monitoring process performance, improving overall equipment utilization while reducing labor intensity. For manufacturers expanding production capacity, this integrated approach provides a practical way to increase output without introducing unnecessary process complexity.

Another important advantage is the reduction of product loss during transfer. Conventional production layouts often require multiple open charging and discharge points, each creating opportunities for material loss and contamination. The enclosed Closed Material Transfer System significantly improves material utilization while maintaining a cleaner production environment.

Flexible Integration for Different Production Requirements

No two pharmaceutical manufacturing facilities operate under exactly the same conditions. Production capacity, formulation characteristics, workshop layout and automation requirements vary considerably from one project to another. Rather than offering a fixed equipment configuration, this Integrated Wet Granulation Solution is designed with a modular architecture that allows the production line to be configured according to specific manufacturing objectives.

The system can be adapted for pilot-scale development, medium-volume commercial production or large-scale continuous manufacturing. Equipment selection, conveying distances, material storage, automation level and process control strategies can all be optimized to match customer requirements without changing the fundamental production philosophy of the line.

Integration with upstream and downstream equipment is equally important. The granulation line can be connected with raw material dispensing systems, weighing stations, tablet presses, capsule filling machines, coating systems and packaging equipment to establish a complete Solid Dosage Production Line. As production demands evolve, additional process modules can be incorporated with minimal disruption to existing operations, allowing manufacturers to expand capacity while protecting their original investment.

This flexibility also supports manufacturers introducing new formulations. Whether processing conventional pharmaceutical powders, highly active ingredients or moisture-sensitive products, the process configuration can be adjusted to achieve the required granulation performance while maintaining stable production conditions.

Technical Specifications

Supporting Pharmaceutical, Nutraceutical and Powder Processing Industries

Although primarily developed for pharmaceutical solid dosage manufacturing, this Pharmaceutical Processing Equipment has proven equally effective across a broad range of powder processing applications where product consistency, hygiene and reliable material handling are critical.

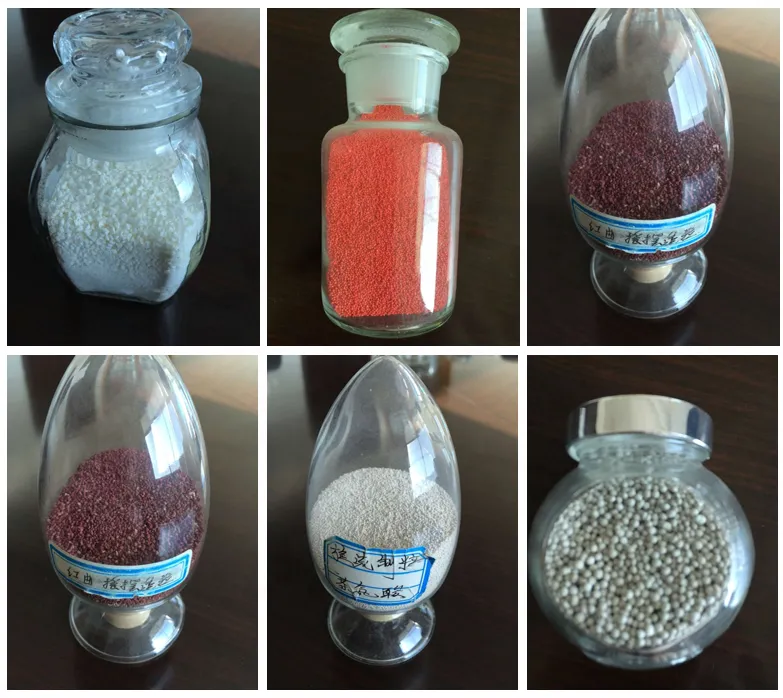

For pharmaceutical manufacturers, the system produces granules with excellent particle size distribution and flow characteristics, providing a stable foundation for tablet compression and capsule filling. Uniform granulation helps improve dosage consistency while reducing production variability between batches, making the equipment suitable for both generic and innovative drug manufacturing.

In the nutraceutical industry, the line processes vitamin formulations, herbal extracts, protein blends and dietary supplements with the same level of precision expected in pharmaceutical production. The enclosed conveying system protects sensitive ingredients from external contamination while maintaining consistent product quality throughout the manufacturing cycle.

Food manufacturers also benefit from the hygienic design when processing coffee powders, nutritional ingredients, seasoning blends, starch-based products and functional food formulations. Controlled moisture addition and uniform drying improve powder handling characteristics while supporting efficient downstream packaging operations.

Beyond food and healthcare applications, the system provides an effective Integrated Powder Processing Solution for specialty chemicals, catalysts, pigments, fine minerals and other industrial powders. The sealed conveying network minimizes dust emissions and improves workplace safety when handling materials that require enhanced containment or environmental protection.

Because the production line is built around modular engineering principles, it can accommodate a wide variety of material properties without compromising process stability. This flexibility enables manufacturers to respond quickly to changing market demands while maintaining consistent product quality and operational efficiency.

Why Partner With Us

Selecting a pharmaceutical equipment supplier involves more than comparing technical specifications. Long-term production performance depends on engineering experience, process understanding and the ability to deliver solutions that integrate seamlessly with existing manufacturing operations. Rather than supplying individual machines, we focus on developing complete pharmaceutical granulation solutions that support stable production from raw material charging to the final blending stage.

Our engineering team works closely with customers during project planning to evaluate material characteristics, production objectives and facility constraints before recommending the most suitable configuration. This collaborative approach allows every Sealed Solid Dosage Granulation Line to be designed around real manufacturing requirements instead of relying on a standardized layout.

Each project can be configured with different levels of automation, containment and process integration, enabling manufacturers to balance productivity, regulatory expectations and future expansion plans. Whether the objective is to modernize an existing facility or build a new solid dosage production plant, the equipment is engineered to provide reliable performance, efficient material handling and consistent product quality throughout its service life.

Beyond equipment delivery, technical support remains available throughout installation, commissioning and production start-up. By combining engineering expertise with practical application experience, we help customers optimize process performance, reduce operational risks and maximize the long-term value of their investment.

Frequently Asked Questions

What types of materials can the granulation line process?

The system is designed for a wide variety of powder materials, including pharmaceutical formulations, nutraceutical ingredients, herbal extracts, food additives and specialty chemical powders. Different process parameters can be configured according to particle characteristics, moisture sensitivity and formulation requirements to achieve consistent granulation performance.

How does the vacuum conveying system improve product quality?

Unlike conventional manual transfer methods, the Vacuum Conveying System transports materials through a fully enclosed pipeline. This reduces dust generation, minimizes the risk of cross contamination and prevents unnecessary product loss during transfer. Stable and continuous material movement also improves process consistency throughout the entire wet granulation process.

Can the production line be integrated with other pharmaceutical equipment?

Yes. The system is designed as an integrated pharmaceutical processing line and can be connected with dispensing systems, tablet presses, capsule filling machines, coating equipment, intermediate bulk containers (IBCs) and packaging lines. This flexibility allows manufacturers to establish a complete solid dosage production line while simplifying future production expansion.

Is the equipment suitable for GMP-oriented manufacturing?

The production line has been engineered with enclosed processing, hygienic stainless-steel construction and automated process control to support GMP-oriented manufacturing practices. Optional features such as Cleaning-in-Place (CIP), electronic batch recording and higher containment configurations can be incorporated according to individual project requirements and local regulatory expectations.

Can the granulation line be customized for different production capacities?

Absolutely. Every manufacturing facility has unique process requirements. The equipment can be customized according to production capacity, workshop layout, automation level, containment strategy and material characteristics. This modular engineering approach enables manufacturers to build a solution that matches both current production needs and future business growth.
