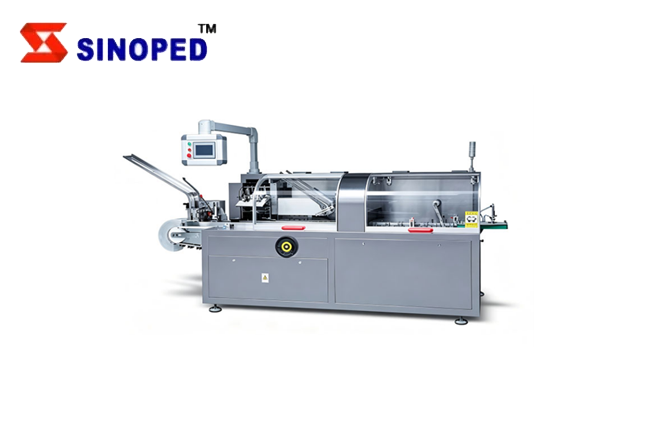

120ZIP Automatic Cartoning Machine

Definition

The 120 ZIP Automatic Cartoning Machine is an intermittent motion horizontal cartoner developed for fully automatic secondary packaging. It performs every stage of the cartoning process—from carton feeding and opening to product insertion, leaflet loading, carton sealing, quality inspection, and automatic rejection—within a single integrated system.

Unlike conventional automatic cartoners that rely on purely mechanical adjustment, the 120 ZIP model combines servo-controlled motion, intelligent vision technology, and modular engineering to improve packaging consistency while simplifying product changeovers. The result is a high-speed cartoning machine capable of maintaining stable performance across a wide variety of carton sizes and product formats without sacrificing accuracy or reliability.

Its hygienic GMP design also makes it particularly suitable for pharmaceutical manufacturing environments where cleanliness, traceability, and equipment stability are essential.

How It Works

During operation, cartons are automatically transferred from the extended magazine to the carton opening station, where the proprietary ZIP Dual Rotary Synchronous Negative Pressure System precisely separates and erects each carton. Compared with traditional vacuum suction mechanisms, this technology significantly reduces carton deformation and minimizes failures caused by incomplete opening, especially when processing lightweight or laminated cartons.

After the carton is fully formed, the independent servo-driven pushing module accurately inserts the product into the carton while maintaining precise control of pushing speed, stroke, and pressure. If package inserts are required, they are folded and inserted automatically before the product loading sequence is completed.

The filled carton then proceeds to the sealing station, where either tuck-in closure or hot-melt glue sealing can be selected according to packaging requirements. Before leaving the machine, every carton passes through a comprehensive photoelectric and vision inspection system capable of detecting missing products, missing leaflets, carton opening defects, sealing abnormalities, and batch code errors. Any defective package is automatically rejected and production data is simultaneously uploaded to the MES system for complete manufacturing traceability.

This fully automated packaging workflow minimizes manual intervention while ensuring stable, repeatable, and compliant cartoning performance.

Specifications

Selection Guide

Choosing the right automatic cartoning machine depends on production capacity, packaging flexibility, and future automation requirements rather than speed alone. Manufacturers producing a single product in large volumes often prioritize stability, while contract packaging companies and pharmaceutical factories usually require rapid format changes and compatibility with multiple carton styles.

The 120 ZIP Automatic Cartoning Machine is designed to satisfy both demands. Its modular servo architecture allows operators to switch between different product specifications through parameter adjustment instead of replacing complete tooling, dramatically shortening changeover time and improving equipment utilization. The integrated vision inspection system also makes the machine particularly suitable for manufacturers that must comply with strict pharmaceutical quality standards or serialization requirements.

For production lines processing blister packs, bottles, sachets, ointment tubes, medical devices, cosmetics, or health supplements, the machine provides an ideal balance between speed, flexibility, and long-term operational reliability.

Comparison

Compared with traditional horizontal cartoning machines, the 120 ZIP series introduces several innovations that directly improve packaging efficiency and reduce total operating costs. The proprietary ZIP negative-pressure carton opening technology significantly lowers carton jamming rates, while the independent servo pushing system minimizes product damage during insertion. Instead of relying on extensive mechanical adjustments, operators can store more than fifty production recipes and complete product changeovers within minutes.

The GMP balcony structure further separates the packaging area from the transmission system, preventing lubricant contamination and simplifying sanitation. Combined with intelligent vision inspection, automatic defect rejection, and MES connectivity, the machine offers a substantially higher level of automation than conventional cartoning equipment, making it well suited for Industry 4.0 manufacturing environments.

Applications

The versatility of the 120 ZIP Automatic Cartoning Machine enables it to serve a wide range of industries where consistent secondary packaging is critical. Pharmaceutical manufacturers use the machine for blister packs, tablet bottles, capsules, ampoules, and ointment tubes, while nutraceutical producers rely on it for vitamins, dietary supplements, and sachet products. Medical device companies benefit from its precise handling of diagnostic kits, syringes, masks, and disposable medical products.

Beyond healthcare applications, the machine is equally suitable for cosmetic packaging, skincare products, personal care items, and household consumer goods. Thanks to its flexible carton handling capability and rapid product changeover, it is also widely used by contract packaging companies managing multiple customer product lines within the same production facility.

Installation & Maintenance

The 120 ZIP Automatic Cartoning Machine has been engineered with maintenance efficiency in mind. Its modular transmission structure simplifies routine servicing while standardized mechanical components reduce spare parts inventory and maintenance costs. Because the packaging section is completely isolated from the drive mechanism, operators can perform daily cleaning quickly without exposing products to lubricant contamination.

Routine maintenance primarily involves cleaning product-contact surfaces, inspecting vacuum pressure, checking servo positioning accuracy, and lubricating designated transmission components according to the preventive maintenance schedule. The PLC control system continuously monitors machine status and provides real-time diagnostic information, allowing maintenance personnel to identify potential issues before they develop into production downtime. Even during long-term continuous operation, the stable electrical and pneumatic systems help maintain reliable performance with minimal maintenance intervention.

Compliance & Industry Standards

The 120 ZIP Automatic Cartoning Machine is engineered in accordance with internationally recognized pharmaceutical packaging and industrial manufacturing practices, making it suitable for highly regulated production environments. From hygienic machine construction to intelligent process control, every aspect of the equipment is designed to support safe, reliable, and traceable secondary packaging.

The machine adopts a GMP-compliant balcony structure, separating the product handling area from the transmission mechanism to eliminate the risk of lubricant contamination and facilitate routine cleaning. All product-contact components are manufactured from SUS304 stainless steel and anodized aluminum alloy with smooth, easy-to-clean surfaces, helping manufacturers maintain stringent hygiene standards required in pharmaceutical, nutraceutical, and medical device production.

To support modern digital manufacturing, the equipment features industrial communication interfaces that enable seamless integration with MES (Manufacturing Execution Systems) and ERP (Enterprise Resource Planning) platforms. Production data, machine status, recipe management, and defect records can be transmitted in real time, improving process transparency and product traceability.

Depending on project requirements and destination markets, the machine can be manufactured to comply with internationally recognized standards, including:

· GMP (Good Manufacturing Practice)

· ISO 9001 Quality Management System

· CE Machinery Directive (optional)

· FDA-compliant pharmaceutical manufacturing environments

· Industry 4.0 and Smart Factory integration requirements

· Electronic production data collection and traceability systems

With its sanitary design, intelligent automation, and robust safety protection, the 120 ZIP Automatic Cartoning Machine is well suited for pharmaceutical companies, contract packaging providers, healthcare manufacturers, and other industries where regulatory compliance and consistent packaging quality are essential.

Troubleshooting

Although the 120 ZIP Automatic Cartoning Machine is designed for continuous, high-speed operation with exceptional reliability, routine production may occasionally encounter issues related to packaging materials, product dimensions, or machine settings. The integrated PLC control system continuously monitors machine performance and displays fault diagnostics directly on the touchscreen interface, enabling operators to quickly identify the cause of a problem and minimize downtime.

The machine's built-in fault memory records alarm history and operating conditions, allowing maintenance personnel to analyze recurring issues efficiently. Combined with its modular mechanical structure and standardized spare parts, troubleshooting and maintenance can be completed quickly, helping maximize equipment uptime and reduce total maintenance costs.

Frequently Asked Questions (FAQ)

What products can the 120 ZIP Automatic Cartoning Machine package?

The machine is designed for a wide variety of products, including pharmaceutical blister packs, tablet and capsule bottles, ointment tubes, sachets, medical devices, diagnostic kits, health supplements, cosmetic products, and daily consumer goods. Its flexible design allows manufacturers to package multiple product formats on a single production line.

What is the maximum production speed?

The standard operating speed ranges from 30 to 120 cartons per minute, depending on product dimensions, carton specifications, and packaging configuration. Servo-controlled motion and intelligent synchronization ensure stable performance throughout the speed range.

Does the machine support multiple carton sizes?

Yes. The modular servo-driven design allows operators to change product specifications by adjusting stored machine parameters rather than replacing complete tooling. This significantly reduces changeover time and improves production flexibility for manufacturers handling multiple SKUs.

Which carton sealing methods are supported?

The machine supports both tuck-in carton sealing and hot-melt glue sealing. These two sealing methods can operate independently or be switched according to packaging requirements. The hot-melt glue module features independent temperature control together with automatic glue interruption and leakage detection.

Is the machine suitable for pharmaceutical production?

Absolutely. The machine incorporates a GMP-compliant balcony structure, SUS304 stainless steel product-contact components, enclosed safety guarding, and contamination-free transmission design. These features make it highly suitable for pharmaceutical, nutraceutical, and medical device manufacturing environments requiring hygienic production conditions.

Does the machine include an automatic inspection system?

Yes. Every packaged carton is inspected using a combination of photoelectric sensors and intelligent vision technology. The system automatically detects missing products, missing leaflets, unopened cartons, sealing defects, and missing batch codes before defective cartons are rejected from the production line.

Can the machine be integrated with other packaging equipment?

Yes. The 120 ZIP Automatic Cartoning Machine can be integrated with blister packaging machines, bottle filling lines, sachet packaging machines, tube filling machines, labeling systems, checkweighers, case packers, palletizers, and other automated packaging equipment to create a complete end-of-line packaging solution.

Does the machine support MES or ERP connectivity?

Yes. Built-in industrial communication interfaces enable seamless integration with MES, ERP, and other factory automation platforms. Production recipes, machine status, operating parameters, alarm history, and defect data can all be transmitted for centralized production management and full product traceability.

How easy is routine maintenance?

Maintenance has been simplified through a modular mechanical structure, standardized spare parts, and intelligent diagnostic functions. Daily cleaning, lubrication, and inspection can be completed quickly, while the touchscreen interface provides real-time fault guidance to reduce maintenance time and improve equipment availability.

What are the advantages of the ZIP dual rotary carton opening technology?

The proprietary ZIP Dual Rotary Synchronous Negative Pressure System significantly improves carton opening stability compared with conventional vacuum systems. It reduces carton jamming, prevents deformation of lightweight cartons, improves opening accuracy at high speeds, and extends machine service life by reducing mechanical wear.

Is the machine suitable for smart factory applications?

Yes. With recipe storage for more than 50 product formats, intelligent energy-saving control, industrial communication interfaces, production data collection, and MES/ERP integration, the machine is fully prepared for Industry 4.0 and digital manufacturing environments.
