Automatic Electronic Counting Machine

Definition

What Is an Automatic Electronic Counting Machine?

An automatic electronic counting machine is an intelligent pharmaceutical packaging device that uses electronic detection technology to count and fill solid products into bottles with high precision.

Compared with traditional counting equipment, this automatic tablet counting machine uses advanced optical sensing and intelligent control algorithms to achieve stable counting accuracy during continuous production. It is widely used for pharmaceutical tablets, hard capsules, soft capsules, health supplements, pills, and irregular-shaped solid products.

Designed for GMP pharmaceutical environments, the machine combines high-speed operation, easy cleaning, flexible product changeover, and smart production management, making it suitable for pilot production and small-to-medium batch manufacturing.

How It Works

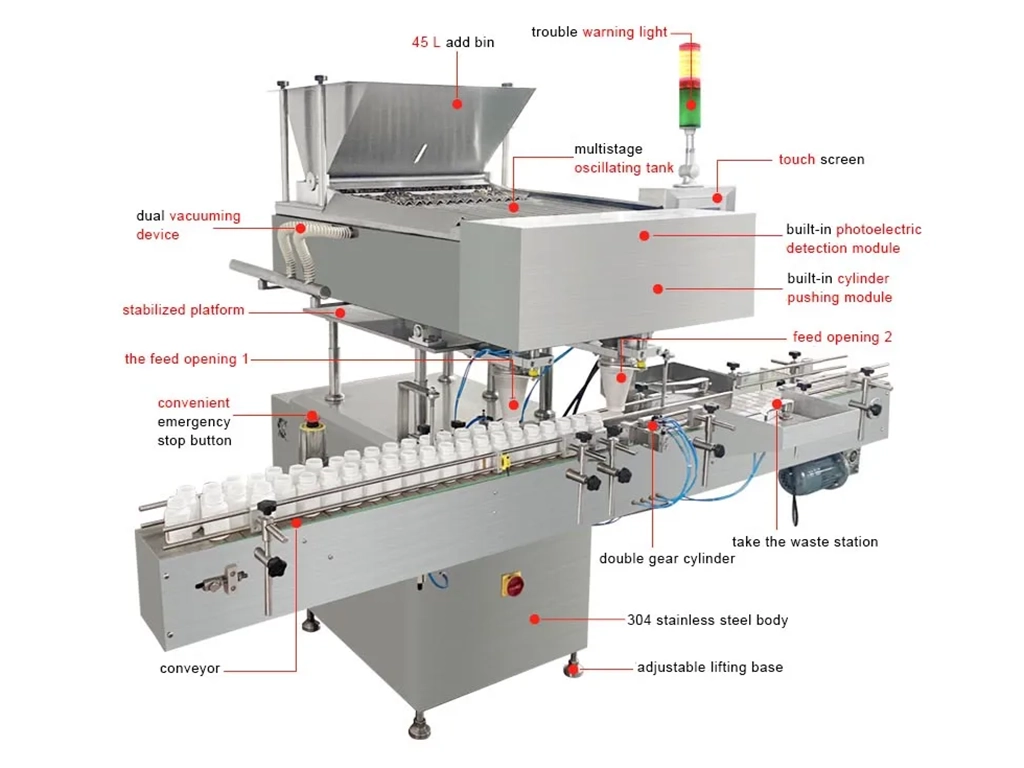

The Sinoped pharmaceutical counting machine adopts a multi-stage feeding and electronic detection process to achieve accurate automatic bottle filling.

Products are first loaded into the hopper and evenly distributed through a three-stage variable frequency vibration feeding system. Unlike traditional single vibration structures, each feeding zone can be independently adjusted according to product characteristics, allowing the system to handle different materials such as fragile soft capsules, sugar-coated tablets, and irregular pills without excessive friction or damage.

After entering the counting channels, products pass through the 8-lane parallel counting system. The FPGA hardware synchronous counting technology performs high-speed signal processing and accurately identifies overlapping, adhered, or broken products, reducing errors caused by traditional counting methods.

The sealed photoelectric detection module works together with the negative pressure dust collection system to prevent powder contamination from affecting optical signals. After reaching the preset quantity, the PLC control system automatically releases products into bottles and communicates with downstream packaging equipment for continuous production.

Product Specifications

Key Advantages of Sinoped Tablet Counting Machine

The Sinoped high-speed tablet counting machine is developed for manufacturers requiring higher accuracy, production flexibility, and pharmaceutical-grade hygiene.

The machine features an 8-lane parallel counting structure, providing stable output and adjustable speed for different production requirements. By combining FPGA hardware synchronization technology with sealed photoelectric detection, it maintains reliable counting performance even during long-term operation.

The three-stage independent vibration feeding system allows precise control of product movement. This design protects sensitive materials such as soft capsules and coated tablets while improving feeding efficiency.

For pharmaceutical production environments, all product-contact parts are manufactured from 316L stainless steel. The enclosed structure reduces dust contamination, eliminates sanitary dead zones, and simplifies cleaning and product changeover.

The integrated PLC control system supports recipe storage, parameter memory, production statistics, and fault diagnosis. With reserved MES communication interfaces, the machine can be connected with smart factory systems for production data tracking and digital management.

Technical Innovation

FPGA Synchronous Counting Technology

The core advantage of this electronic tablet counter is the FPGA-based synchronous counting system. Through multi-channel hardware sampling and high-speed signal processing, the machine can accurately detect product overlap, adhesion, and breakage, reducing missing counts and false counts during continuous production.

Dust-Proof Optical Counting System

Traditional tablet counters may experience counting deviation when powder blocks the sensor path. Sinoped solves this problem through a sealed optical detection structure combined with negative pressure dust collection.

This design is especially suitable for:

·             Powder-coated tablets

·             Herbal medicine products

·             Sugar-coated tablets

·             Long-time continuous production

GMP Fast Changeover Design

The modular structure allows product-contact components to be quickly removed without complicated tools. This improves cleaning efficiency and minimizes downtime between production batches.

It is particularly suitable for pharmaceutical companies producing multiple products with frequent formulation changes.

Product Selection Guide

Different models are designed for different production capacities.

The ETT-12 automatic counting machine is suitable for standard pharmaceutical and nutraceutical production where flexible operation and moderate output are required.

The ETT-16 capsule counting machine provides higher efficiency for manufacturers requiring continuous medium-speed bottle filling.

The ETT-24 high-speed tablet counting machine is designed for large-volume production lines requiring maximum throughput.

Applications

Pharmaceutical Industry

The automatic pill counting machine is widely used for pharmaceutical bottle filling applications, including tablets, capsules, vitamins, and health supplements.

Its GMP-compatible structure and high counting accuracy make it suitable for pharmaceutical factories requiring reliable and hygienic packaging solutions.

Nutraceutical and Health Supplement Industry

The machine is ideal for counting and filling dietary supplements, functional foods, and various solid nutrition products.

Food and Other Solid Product Packaging

Besides pharmaceutical products, the electronic counting machine can also handle candy, nuts, coffee beans, and other granular materials.

It can also be applied for counting small electronic components and precision parts where accurate quantity control is required.

Installation & Maintenance

The machine requires a stable installation environment with AC220V power supply and clean compressed air at 0.4-0.6MPa.

Routine maintenance mainly includes cleaning the photoelectric detection system, checking vibration feeding channels, inspecting dust collection performance, and verifying counting accuracy.

Thanks to the modular GMP structure and standardized components, daily operation and maintenance are simplified, reducing downtime and improving production efficiency.

Industry Standards & Compliance

The Sinoped automatic electronic counting machine is designed according to pharmaceutical equipment requirements and supports GMP-compliant production environments.

The machine can be manufactured according to international market requirements, including:

·             GMP pharmaceutical manufacturing standards

·             ISO 9001 quality management system

·             CE machinery safety requirements

·             FDA-related pharmaceutical packaging requirements

Troubleshooting

FAQ

What products can an automatic counting machine count?

The machine can count tablets, capsules, pills, soft capsules, health supplements, candy, and other solid products.

How accurate is the tablet counting machine?

The FPGA synchronous counting system and dust-resistant photoelectric detection technology provide stable high-precision counting during continuous operation.

Can this capsule counting machine handle different bottle sizes?

Yes. The machine supports bottle sizes from 10ml to 500ml and can adapt to different packaging requirements.

Is this machine suitable for GMP pharmaceutical factories?

Yes. The machine uses 316L stainless steel contact parts and hygienic modular design to meet GMP production requirements.

Can the counting machine connect with a packaging line?

Yes. It can integrate with bottle unscramblers, capping machines, sealing machines, labeling machines, and other pharmaceutical packaging equipment.
